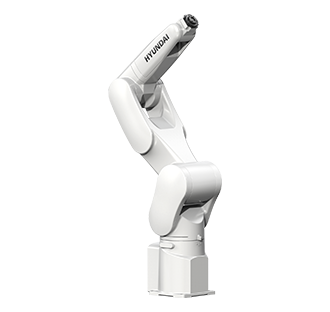

Industrial Robot

HDF8-8(HH8)

  • Payload8kg
  • Max.reach832mm
  • Repeatability±0.02
  • Applicable ControllerHi7-N30, Hi6-T15, N20, Hi5a-T10, S20, S30
Product Overview

Compact High-Speed Handling Robot, HDF8-8

Fast and Precise Industrial Robot, HDF8-8

The HDF8-8 model from HD Hyundai Robotics plays an essential role in precision manufacturing with its speed, accuracy, and repeatability.
High-speed handling robots enable both automation and quality improvement, maximizing productivity and operational efficiency across a wide range of industries.

Key Features

What Sets HDF8-8 Apart

By assembling, aligning, and transporting parts at high speed, it reduces process time and increases productivity.
Excellent repeatability is maintained even during high-speed operation, enabling precise positioning and assembly of precision parts.
Its lightweight design and fast response make it ideal for fine assembly, while its compact size delivers high work efficiency even in confined spaces.
A high-strength design optimized for high-speed motion ensures durability and a long service life.

8 kg

Payload

832 mm

Reach

±0.02

Repeatability

Sepecifications

Check out the Detailed Specifications of the HDF8-8(HH8)

산업용 로봇 세부 스펙
Structure Articulated
Degree of Freedom 6
Drive Method AC Servo
Max. Motion Range Main Axes Swivel ±170°
Horizontal +180 ~ 55°
Vertical +213 ~ -70°
Wrist Axes R2 ±190°
B(Bending) ±135°
R1(Twisting) ±360°
Max. Speed Main Axes Swivel 455°/s
Horizontal 385°/s
Vertical 520°/s
Wrist Axes R2 550°/s
B(Bending) 550°/s
R1(Twisting) 1000°/s
Payload 8 kg
Allowable Torque Wrist Axes R2 1.73 kgf.m
B(Bending) 1.73 kgf.m
R1(Twisting) 1.02 kgf.m
Repeatability ±0.02 mm
Ambient Temperature 0 ~ 40 ℃
Body Weight 41 kg
Installation Method Floor, Ceiling, Angle
Download Center

Explore All the Information about the HDF8-8(HH8)

  • [CE] HDF4-5, HDF4H-6, HDF4L-11, HDF7-9, HDF7H-9, HDF8-8 + Hi6-N20

    Certificate Common PDF
  • [CE] HDF4-5, HDF4H-6, HDF4L-11, HDF7-9, HDF7H-9, HDF8-8 + Hi6-T15

    Certificate Common PDF
  • KCs_[Hi6&7]HDF8-8

    Certificate Common PDF
  • HH8 3D Model

    Draw3D Common STP
  • HH8 CAD File

    Act. CAD Common DWG
  • HH8 SpecSheet

    Specsheet EN PDF
  • HH8 Technical Spec

    Act. PDF Common PDF
  • CE_[Hi6-T15, Hi5a-T10, Hi5a-S20] HH4, HH4L, HH7, HH8, HH4E, HH7E

    Certificate Common PDF
  • KCs_[Hi5a]HH8

    Certificate Common PDF
  • NRTL_[Hi5a] HH4, HH4L, HH7, HH8, HH4E, HH7E (Hi6-T15, Hi5a-T10, Hi5a-S20)

    Certificate Common PDF
  • CE_[Hi6-T15, Hi5a-T10, Hi5a-S20] HH4, HH4L, HH7, HH8, HH4E, HH7E

    Certificate Common PDF
  • CE_[Hi6-T15, Hi5a-T10, Hi5a-S20] HH4, HH4L, HH7, HH8, HH4E, HH7E

    Certificate Common PDF
  • NRTL_[Hi6-T15, Hi5a-T10, Hi5a-S20] HH4, HH4L, HH7, HH8, HH4E, HH7E

    Certificate Common PDF
  • Manipulator Maintenance Manual - HH4L / HH7 / HH7E / HH8

    Manual EN PDF
  • HH4L/HH7/HH7E/HH8_Manipulator Maintenance Manual

    Manual EN PDF
  • Hi5a-T10 3D Model

    Draw3D Common STP
  • Hi5a-T10 CAD File

    Act. CAD Common DWG
  • Hi5a-T10_3D Model

    Draw3D Common STP
  • Hi5a-S20 3D Model

    Draw3D Common STP
  • Hi5a-S20 CAD File

    Act. CAD Common DWG
  • Hi5a-S20 with TR BOX(CSATER) 3D Model

    Draw3D Common STP
  • Hi5a-S20 with TR BOX(CSATER) CAD File

    Act. CAD Common DWG
  • Hi5a-S20 3D File

    Draw3D Common STP
  • CE_[Hi5a-S30] HA006B, HA006L, HH006BL, UA006, HH012, HH012A, HH010L, HH020, HDR20-17

    Certificate Common PDF
Parts

Do you Need to Replace Any Accessories for the HDF8-8(HH8)

Comparision

Check out Similar Products to theHDF8-8(HH8)

  • HDF8-8(HH8)

    • Payload 8kg
    • Max.reach 832mm
    • Repeatability ±0.02
  • HDF4-5(HH4)

    • Payload 4kg
    • Max.reach 581mm
    • Applicable Controller Hi7-N30, Hi6-T15, N20 Hi5a-T10, S20, S30
  • HDF7-9(HH7)

    • Payload 7kg
    • Max.reach 932mm
    • Applicable Controller Hi7-N30, Hi6-T15, N20, Hi5a-T10, S20, S30
